C3020-3X waterjet cutting machine for sale

C3020-3X waterjet cutting machine good at shower doors& windows cut, max. cutting size 2000*3000mm, cantilever table with a flexible arm, it’s much easier for glass sheets loading and unloading.

3068348 copy
FOR A PRICE

Speak To A Waterjet Specialist

Details

C3020 3X Waterjet

Model

C3020-50HE-3 Axis

PROCESSING RANGE

3000*2000mm

Z-AXIS TRAVEL

150mm

MAX.PRESSURE

420MPa/4200bar

COOLING SYSTEM

Wind Cooling

SUPPORT

Design Customized

Group 11

WATCH VEDIO

About the cutting

FEATURES

Cutting Precise , High Efficiency Without Heat- Affected Zones

Environment Friendly, Less Waste Of Material, A Smooth Cutting Surface Without Burrs.

SERIES

C3020-3X Series

ACCESSORIES

Accessories For G3020 Waterjet Cutting Machines

Design by FEA assist

SAME waterjet machines cantilever tables were designed by finite element analysis, which has high support strength and reasonable structure, as a result, it makes sure the whole table with excellent static and dynamic balance so that it can maintain extremely high accuracy.

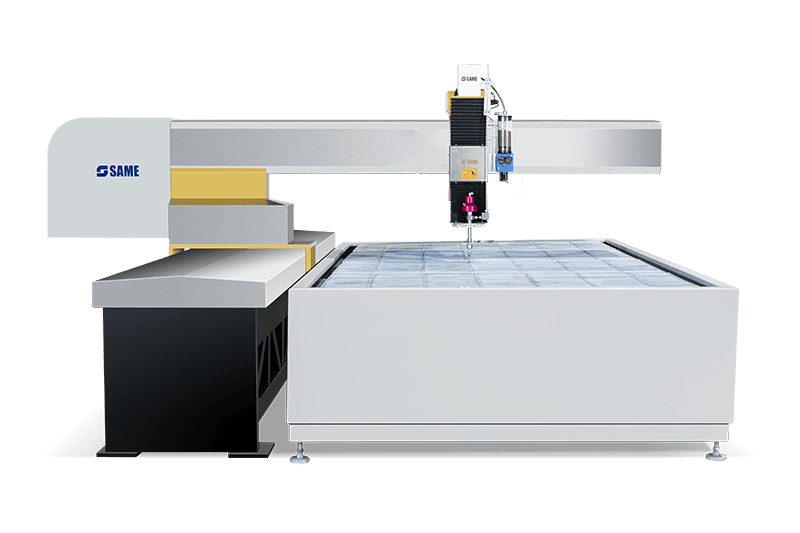

Cantilever 3-axis water jet cutting

C3020 Technical Parameters

Cantilever Cutting Table
3950*3800
X=3000mm Y=2000mm
150mm
±0.01mm
±0.1mm
±0.025mm/m
HIGH PRESSURE PUMP

Flexible combination, high productivity

The 50HE series pump can work with any cutting heads and cutting tables, it always offers high stability and outstanding cutting performance.

50HE Pump Technical Parameters

Hydraulic
Air cooling system
1800mm*1050mm*1300mm
1200Kg
37KW/50hp
420MPa/4200bar
300-350MPa
3.7L/min
0.35mm
380V 50Hz

Get higher quality parts

3axis cutting system of SAME waterjet has high-quality nozzle components, durable, and high cutting accuracy so that you can get better quality cut parts.

3 axis waterjet cutting head

3X Technical Parameters

3 axis waterjet cutting head
±0.05/1000mm
±0.02/1000mm
±0.10/1000mm
CNC control system 2

Quicky evolve in production

The control system runs under the support of the latest Windows system, what your operator needs to do is just prepare the draws-in offers and transfer them to the machine by internet or USB.

Control System Technical Parameters

600mm*550mm*1200mm
200kG
AC 220V 50/60Hz
NC Studio
YASKAWA / WEIHONG

Efficient production process

Abrasive feeding rate adjustable and without stop, which make sure the cutting continuously, it really save you time and waste-free.

Automatic abrasive system 2

Abrasive System Technical Parameters

600mm*600mm*1400mm
80kG
200Kg
0.2Mpa
30W
3068348 copy
FOR A PRICE

Speak To A Waterjet Specialist

OPTIONAL

Following Options Help You Improve Production Efficiency!

Layer 748

remarkable 3D solution

IGEMS is the best solution for 3D waterjet cutting, with automatic and customizable 3D functions. You can check your program by simulation before real processing, which is simple and easy to use.

Satisfied your cutting needs

The CONTRONEST was developed by a team who with 20 years of cutting machine experience, they understand your cutting need very well so as to develop the most advanced waterjet controller in combination with ease of use.

Layer 749
HYDRAULIC LOADING PLATFORM

More Production Time

The platform can save a lot of up and down material time during mass production and processing, safe and efficient.

Saving abrasive

The Allfi hopper controlled either by an external analog signal or a potentiometer. This system can help users save abrasion and improve cutting quality.

Layer 751
AC5 axis waterjet cutting head

Advanced 3D shapes

The upgrade 3D/AC5axis cutting head not only offers 0-45° bevel cut but also realizes 3D cut.

Perfect bevel

The OAB 5axis cutting system handles bevel cutting even better. It is the best solution for the perfect inlay of marble. Compared with the traditional AB five-axis cutting system, the cutting efficiency is increased by at least 10%.

Layer 753
3068348 copy
FOR A PRICE

Speak To A Waterjet Specialist

SERVICE & SUPPORT

What Can we serve for you ?

Besides life long technical support, we also offer you service as below:

2891398 1

We will take the most reasonable and security packing way, with wooden cases and all kinds of soft packing material, as well as airbags, so that make sure the machine arrive at customer’s place safely.

633649

We will send one engineer to come to your site for helping set up the machine and testing.

4282176

Our engineer will learn your staff how to use the machine and do the machine maintenance.

Color Overlay

12 months or 2500 working hours warranty.
